Brand Name : | XTCERA |
Model Number : | Zirconia Milling Burs |
Certification : | CE , ISO |
Price : | 75$ / Set |
Payment Terms : | T/T |
Delivery Time : | 3 Working Days |

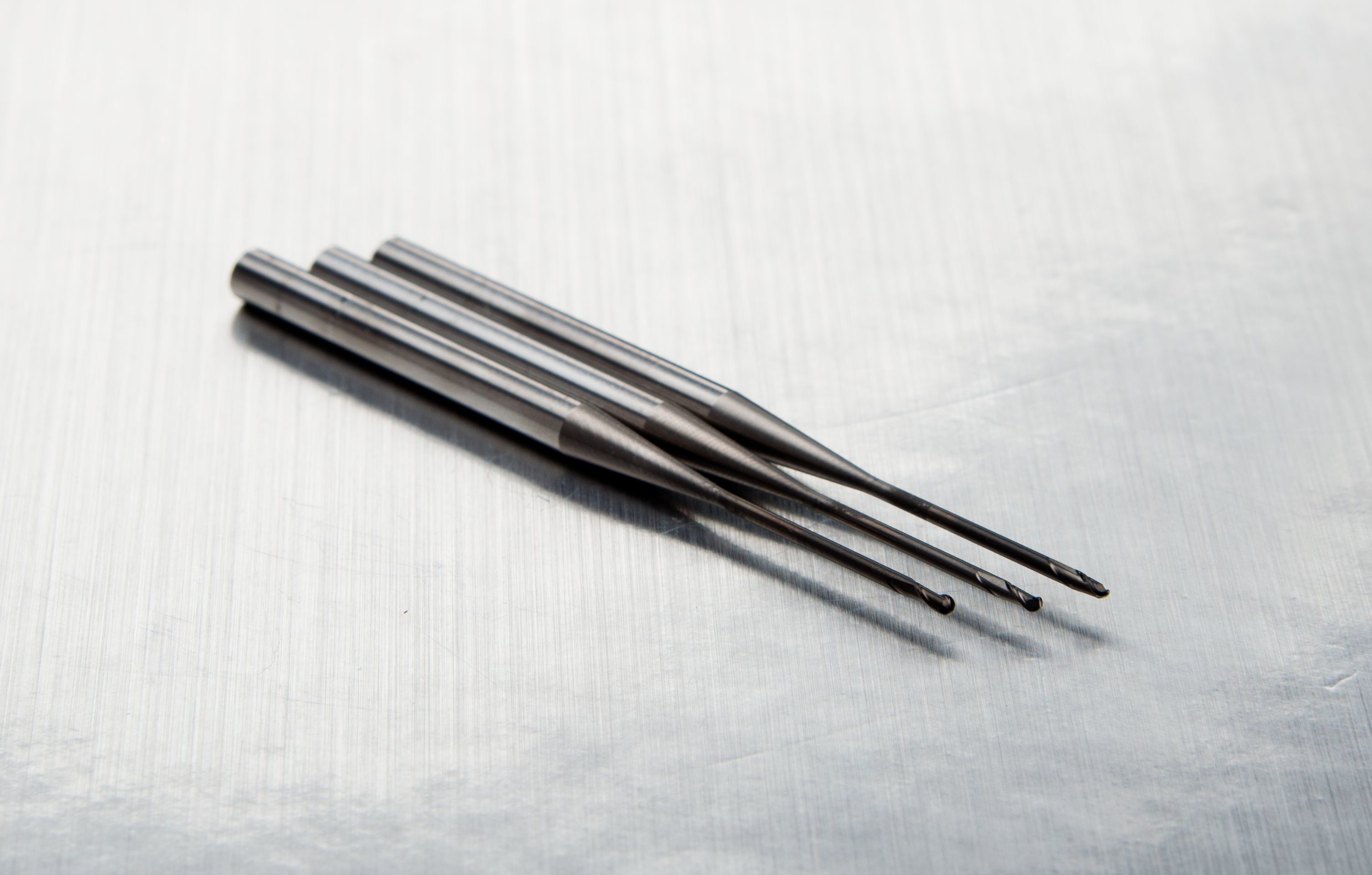

High Thickness Dental Milling Burs 300 Crowns Above Ceramics Milling Burs
Specification | |||
Tool Number | T1 | T2 | T3 |
Shank Diameter (mm) | 3/4 | 3/4 | 3/4 |
Cutting Edge Diameter (mm) | 2 | 1 | 0.6 |
Total Tool Length (mm) | 50 | 50 | 50 |
Cutting Length (mm) | 16 | 16 | 8 |
Above burs are available with XTCEAR milling of X-MILL 220 , X-MILL 300 and X-MILL 500.
These three tools are basic for Zirconia milling, available with Zirconia Crown, Coping , Bridge and other cases.
Fuction of three different tools :
T1 : Start on rough cutting, do 80% of the work .
T2 : Continue the 18% of remained by T1, outlook of case has been shaped .
T3 : Complete the last 2% of groove and margin area cutting .
Note: Long tool for high thickness Zirconia blank milling is also available ( 22mm above thickness material), which cutting length is 22 mm , instead of 16 mm , of T1 and T2, T3 is the same size.
![]() |
